Progress Bars

Descripción general​

Un progress bar le permite a una ventana proveer información de progreso al usuario sin necesidad de cambiar a la propia ventana.

En Windows puede usar un taskbar button para mostrar un progress bar.

Barra de progreso de Windows

En macOS, el progress bar será mostrado como parte del dock icon.

Barra de progreso de macOS

NOTE: on Windows, each window can have its own progress bar, whereas on macOS there can be only one progress bar for the application. On Linux, progress bars are not supported.


All three cases are covered by the same API - the setProgressBar() method available on an instance of BrowserWindow. Para indicar tu progreso, invoca este método con un número entre 0 y 1. Por ejemplo, si tiene una tarea de larga ejecución que actualmente esta al 63% para completar, debería llamarlo como setProgressBar(0.63).

Setting the parameter to negative values (e.g. -1) will remove the progress bar. Setting it to a value greater than 1 will indicate an indeterminate progress bar in Windows or clamp to 100% in other operating systems. Una barra de progreso indeterminada permanece activa pero no muestra un porcentaje real, y se utiliza para situaciones cuando no sabe cuánto tardará una operación en completarse.

See the API documentation for more options and modes.

Ejemplo​

In this example, we add a progress bar to the main window that increments over time using Node.js timers.

const { app, BrowserWindow } = require('electron/main')

let progressInterval

function createWindow () {
const win = new BrowserWindow({
width: 800,
height: 600
})

win.loadFile('index.html')

const INCREMENT = 0.03
const INTERVAL_DELAY = 100 // ms

let c = 0
progressInterval = setInterval(() => {
// update progress bar to next value
// values between 0 and 1 will show progress, >1 will show indeterminate or stick at 100%
win.setProgressBar(c)

// increment or reset progress bar
if (c < 2) {
c += INCREMENT
} else {
c = (-INCREMENT * 5) // reset to a bit less than 0 to show reset state
}
}, INTERVAL_DELAY)
}

app.whenReady().then(createWindow)

// before the app is terminated, clear both timers
app.on('before-quit', () => {
clearInterval(progressInterval)
})

app.on('window-all-closed', () => {
if (process.platform !== 'darwin') {
app.quit()
}
})

app.on('activate', () => {
if (BrowserWindow.getAllWindows().length === 0) {
createWindow()
}
})

After launching the Electron application, the dock (macOS) or taskbar (Windows) should show a progress bar that starts at zero and progresses through 100% to completion. Luego debe mostrar indeterminado (Windows) o anclar a 100% (otros sistemas operativos) brevemente y luego bucle.

macOS dock progress bar

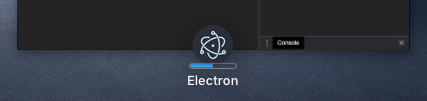

Para macOS, el progress bar también será indicado para su aplicación cuando utilice Mission Control:

Barra de progreso de Control de Misión
