WebView2 and Electron

· 6 lectura mínima

En las últimas semanas, hemos recibido varias preguntas sobre las diferencias entre el nuevo WebView2 y Electron.

Ambos equipos tienen el objetivo expreso de hacer que la tecnología web sea la mejor posible en el escritorio, y se está discutiendo una comparación exhaustiva compartida.

Electrón y WebView2 son proyectos en constante evolución. Hemos realizado un breve resumen de las similitudes y diferencias entre Electron y WebView2 tal y como existen en la actualidad.


Visión general de la Arquitectura

Electrón y WebView2 se desarrollan bajo la fuente de Chromium para renderizar contenido web. Estrictamente hablando, WebView2 se construye a partir de la fuente de Edge, pero Edge se construye utilizando una bifurcacion/fork de la fuente de Chromium. Electron no comparte ninguna DLL con Chrome. Los binarios de WebView2 se enlazan con Edge (canal estable a partir de Edge 90), por lo que comparten disco y algún conjunto de trabajo. Ver Modo de distribución Evergreen para más información.

Electron apps always bundle and distribute the exact version of Electron with which they were developed. WebView2 has two options in distribution. You can bundle the exact WebView2 library your application was developed with, or you can use a shared-runtime version that may already be present on the system. WebView2 provides tools for each approach, including a bootstrapping installer in case the shared runtime is missing. WebView2 is shipped inbox starting with Windows 11.

Applications that bundle their frameworks are responsible for updating those frameworks, including minor security releases. For apps using the shared WebView2 runtime, WebView2 has its own updater, similar to Chrome or Edge, that runs independent of your application. Updating the application's code or any of its other dependencies is still a responsibility for the developer, same as with Electron. Neither Electron nor WebView2 is managed by Windows Update.

Both Electron and WebView2 inherit Chromium’s multi-process architecture - namely, a single main process that communicates with one-or-more renderer processes. These processes are entirely separate from other applications running on the system. Every Electron application is a separate process tree, containing a root browser-process, some utility processes, and zero or more render processes. WebView2 apps that use the same user data folder (like a suite of apps would do), share non-renderer processes. WebView2 apps using different data folders do not share processes.

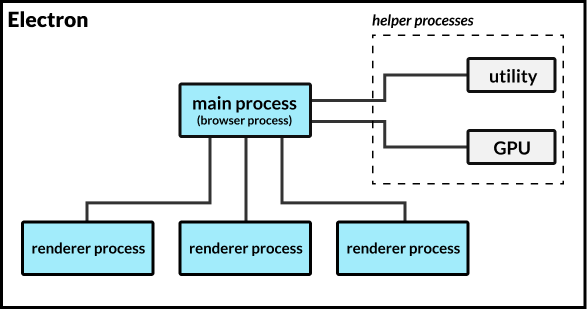

  • ElectronJS Process Model:

    ElectronJS Process Model Diagram

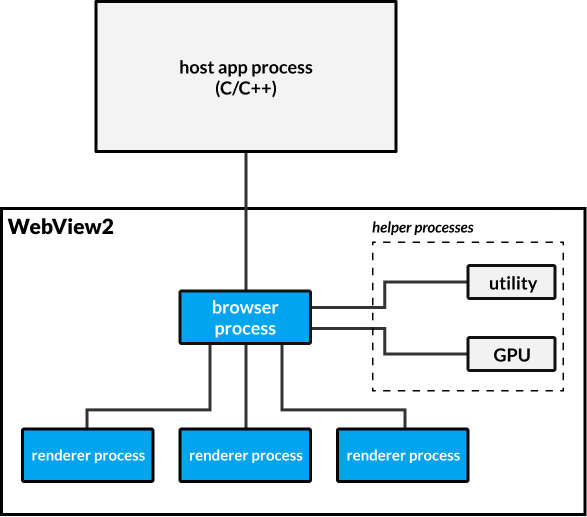

  • WebView2 Based Application Process Model:

    WebView2 Process Model Diagram

Read more about WebView2’s process model and Electron’s process model here.

Electron provides APIs for common desktop application needs such as menus, file system access, notifications, and more. WebView2 is a component meant to be integrated into an application framework such as WinForms, WPF, WinUI, or Win32. WebView2 does not provide operating system APIs outside the web standard via JavaScript.

Node.js is integrated into Electron. Electron applications may use any Node.js API, module, or node-native-addon from the renderer and main processes. A WebView2 application does not assume which language or framework the rest of your application is written in. Your JavaScript code must proxy any operating system access through the application-host process.

Electron strives to maintain compatibility with the web API, including APIs developed from the Fugu Project. We have a snapshot of Electron’s Fugu API compatibility. WebView2 maintains a similar list of API differences from Edge.

Electron has a configurable security model for web content, from full-access to full-sandbox. WebView2 content is always sandboxed. Electron has comprehensive security documentation on choosing your security model. WebView2 also has security best practices.

The Electron source is maintained and available on GitHub. Applications can modify can build their own brands of Electron. The WebView2 source is not available on GitHub.

Quick Summary:

ElectronWebView2
Build DependencyChromiumBorde
Source Available on GitHubNo
Shares Edge/Chrome DLLsNoYes (as of Edge 90)
Shared Runtime Between ApplicationsNoOpcional
Application APIsNo
Node.jsNo
SandboxOpcionalSiempre
Requires an Application FrameworkNo
Plataformas soportadasMac, Win, LinuxWin (Mac/Linux planned)
Process Sharing Between AppsNeverOpcional
Framework Updates Managed ByApplicationWebView2

Performance Discussion

When it comes to rendering your web content, we expect little performance difference between Electron, WebView2, and any other Chromium-based renderer. We created scaffolding for apps built using Electron, C++ + WebView2, and C# + WebView2 for those interested to investigate potential performance differences.

There are a few differences that come into play outside of rendering web content, and folks from Electron, WebView2, Edge, and others have expressed interest in working on a detailed comparison including PWAs.

Inter-Process Communication (IPC)

There is one difference we want to highlight immediately, as we believe it is often a performance consideration in Electron apps.

In Chromium, the browser process acts as an IPC broker between sandboxed renderers and the rest of the system. While Electron allows unsandboxed render processes, many apps choose to enable the sandbox for added security. WebView2 always has the sandbox enabled, so for most Electron and WebView2 apps IPC can impact overall performance.

Even though Electron and WebView2 have a similar process models, the underlying IPC differs. Communicating between JavaScript and C++ or C# requires marshalling, most commonly to a JSON string. JSON serialization/parsing is an expensive operation, and IPC-bottlenecks can negatively impact performance. Starting with Edge 93, WV2 will use CBOR for network events.

Electron supports direct IPC between any two processes via the MessagePorts API, which utilize the structured clone algorithm. Applications which leverage this can avoid paying the JSON-serialization tax when sending objects between processes.

Resumen

Electron and WebView2 have a number of differences, but don't expect much difference with respect to how they perform rendering web content. Ultimately, an app’s architecture and JavaScript libraries/frameworks have a larger impact on memory and performance than anything else because Chromium is Chromium regardless of where it is running.

Special thanks to the WebView2 team for reviewing this post, and ensuring we have an up-to-date view of the WebView2 architecture. They welcome any feedback on the project.
